3D MVC playback problems

Help and Support Raspberry Pi
1

Hey,

I am using the newest Jarvis beta Version for the RsP2. I am having trouble with 3D mvc movies. All of my 3D movies are shown this way:

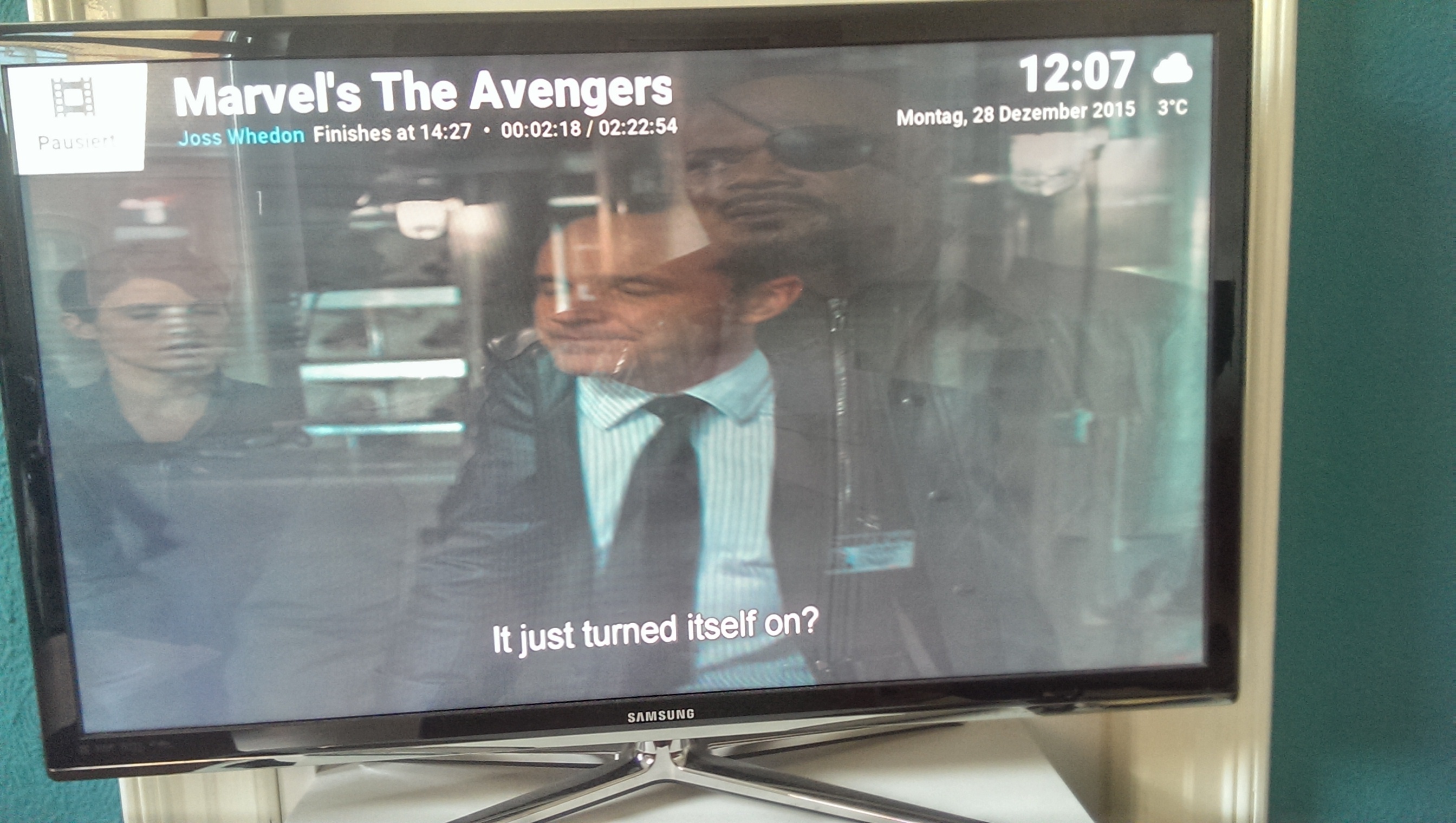

2015-12-28 12.07.17.jpg2688×1520 872 KB

My TV and my 3D beamer are correctly switching into the 3D and 24Hz mode, as soon as I play a movie. I also tried omx and MMAL as players and also checked all the 3D option in the menu (e.g. full framepackage…). I also tried to hook up my TV directly into the RsP2, but nothing works so far.

Here are my config.txt and a current log file:
Pastebin Link

I am looking forward to get some input. Thank you. :slight_smile:

2

The log file doesn’t have debug enabled, and doesn’t show you trying to play a 3D movie. Can you post a new log?

3

Hey & a happy new year to everyone,

here is a recent log file with the debug mode on: http://pasted.co/deff4520

The movie “First Avenger” is showing this huge shifting effect, whereas the movie “The winter soldier” is playing correctly.

Thank you guys!

4

If you play the file from a connected USB drive rather than across the network, does the same issue persist? Wired/wireless? Mediainfo on the affected file?

Please repeat with debug logging enabled and provide full logs system logs as well so we can understand better how you are set up and what is going on.

5

I am using a wired connection, wireless would be insane with a 3d mvc remux. :wink: Here is the media info for the problematic movie (First Avenger):

General
Unique ID : 173885902087280843508957849292693464553 (0x82D134E2030CC2FD0EE8F54A0AAA65E9)
Complete name : /Volumes/filme/Captain America The First Avenger (2011)/Captain.America.The.First.Avenger.2011.3D.MVC.SBS.bluray.remux.mkv
Format : Matroska
Format version : Version 2
File size : 37.6 GiB
Duration : 2h 4mn
Overall bit rate mode : Variable
Overall bit rate : 43.4 Mbps
Movie name : Captain America The First Avenger 3D
Encoded date : UTC 2016-01-02 14:27:57
Writing application : MakeMKV v1.9.8 darwin(x86-release)
Writing library : libmakemkv v1.9.8 (1.3.3/1.4.4) darwin(x86-release)

Video
ID : 1
Format : AVC
Format/Info : Advanced Video Codec
Format profile : Stereo High@L4.1 / High@L4.1
MultiView_Count : 2
Format settings, CABAC : Yes
Format settings, ReFrames : 4 frames
Format settings, GOP : M=1, N=12
Codec ID : V_MPEG4/ISO/AVC
Duration : 2h 4mn
Bit rate mode : Variable
Bit rate : 3 691 Kbps
Maximum bit rate : 30.6 Mbps
Width : 1 920 pixels
Height : 1 080 pixels
Display aspect ratio : 16:9
Frame rate mode : Constant
Frame rate : 23.976 (24000/1001) fps
Color space : YUV
Chroma subsampling : 4:2:0
Bit depth : 8 bits
Scan type : Progressive
Bits/(Pixel*Frame) : 0.074
Stream size : 32.0 GiB (85%)
Language : English
Default : No
Forced : No
FromStats_SOURCE_ID : 001011

Audio #1
ID : 2
Format : DTS
Format/Info : Digital Theater Systems
Format profile : MA / Core
Mode : 16
Format settings, Endianness : Big
Codec ID : A_DTS
Duration : 2h 4mn
Bit rate mode : Variable / Constant
Bit rate : 512 Kbps / 1 509 Kbps
Channel(s) : 8 channels / 6 channels
Channel positions : Front: L C R, Side: L R, Back: L R, LFE / Front: L C R, Side: L R, LFE
Sampling rate : 48.0 KHz
Frame rate : 93.750 fps (512 spf)
Bit depth : 24 bits
Compression mode : Lossless / Lossy
Stream size : 4.42 GiB (12%)
Title : Surround 7.1
Language : English
Default : Yes
Forced : No
FromStats_SOURCE_ID : 001100

Audio #2
ID : 3
Format : AC-3
Format/Info : Audio Coding 3
Mode extension : CM (complete main)
Format settings, Endianness : Big
Codec ID : A_AC3
Duration : 2h 4mn
Bit rate mode : Constant
Bit rate : 640 Kbps
Channel(s) : 6 channels
Channel positions : Front: L C R, Side: L R, LFE
Sampling rate : 48.0 KHz
Frame rate : 31.250 fps (1536 spf)
Compression mode : Lossy
Stream size : 569 MiB (1%)
Title : Surround 5.1
Language : German
Default : No
Forced : No
FromStats_SOURCE_ID : 001101

Audio #3
ID : 4
Format : AC-3
Format/Info : Audio Coding 3
Mode extension : CM (complete main)
Format settings, Endianness : Big
Codec ID : A_AC3
Duration : 2h 4mn
Bit rate mode : Constant
Bit rate : 640 Kbps
Channel(s) : 6 channels
Channel positions : Front: L C R, Side: L R, LFE
Sampling rate : 48.0 KHz
Frame rate : 31.250 fps (1536 spf)
Compression mode : Lossy
Stream size : 569 MiB (1%)
Title : Surround 5.1
Language : English
Default : No
Forced : No
FromStats_SOURCE_ID : 001102

Text #1
ID : 5
Format : PGS
Codec ID : S_HDMV/PGS
Codec ID/Info : Picture based subtitle format used on BDs/HD-DVDs
Duration : 2h 2mn
Bit rate : 3 023 bps
Count of elements : 2458
Stream size : 26.6 MiB (0%)
Language : German
Default : No
Forced : No
FromStats_SOURCE_ID : 001201

Text #2
ID : 6
Format : PGS
Codec ID : S_HDMV/PGS
Codec ID/Info : Picture based subtitle format used on BDs/HD-DVDs
Duration : 2h 0mn
Bit rate : 38 bps
Count of elements : 38
Stream size : 339 KiB (0%)
Language : German
Default : Yes
Forced : No
FromStats_SOURCE_ID : 001201

Text #3
ID : 7
Format : PGS
Codec ID : S_HDMV/PGS
Codec ID/Info : Picture based subtitle format used on BDs/HD-DVDs
Duration : 2h 2mn
Bit rate : 2 744 bps
Count of elements : 2408
Stream size : 24.1 MiB (0%)
Language : English
Default : No
Forced : No
FromStats_SOURCE_ID : 001202

Text #4
ID : 8
Format : PGS
Codec ID : S_HDMV/PGS
Codec ID/Info : Picture based subtitle format used on BDs/HD-DVDs
Duration : 8s 821ms
Bit rate : 4 979 bps
Count of elements : 10
Stream size : 53.6 KiB (0%)
Language : English
Default : No
Forced : No
FromStats_SOURCE_ID : 001202

Text #5
ID : 9
Format : PGS
Codec ID : S_HDMV/PGS
Codec ID/Info : Picture based subtitle format used on BDs/HD-DVDs
Duration : 2h 2mn
Bit rate : 3 074 bps
Count of elements : 2732
Stream size : 27.0 MiB (0%)
Language : English
Default : No
Forced : No
FromStats_SOURCE_ID : 001207

Menu
00:00:00.000 : en:Chapter 01
00:08:12.158 : en:Chapter 02
00:14:56.812 : en:Chapter 03
00:24:21.543 : en:Chapter 04
00:30:39.128 : en:Chapter 05
00:38:39.859 : en:Chapter 06
00:45:52.166 : en:Chapter 07
00:51:58.156 : en:Chapter 08
00:57:55.638 : en:Chapter 09
01:03:59.293 : en:Chapter 10
01:12:22.588 : en:Chapter 11
01:19:10.662 : en:Chapter 12
01:28:27.051 : en:Chapter 13
01:33:53.002 : en:Chapter 14
01:42:20.342 : en:Chapter 15
01:50:45.055 : en:Chapter 16
01:53:46.319 : en:Chapter 17
`

and here for the perfectly playing movie (Winter soldier):

`General
Unique ID : 171301289885984040078643519189925548787 (0x80DF6DA9AE040AE41273F2C81B20D2F3)
Complete name : /Volumes/filme/Captain America The Winter Soldier (2014)/Captain.America.The.Winter.Soldier.2014.1080p.3D.MVC.SBS.DTSHD.7.1-PHX.mkv
Format : Matroska
Format version : Version 2
File size : 39.5 GiB
Duration : 2h 15mn
Overall bit rate mode : Variable
Overall bit rate : 41.6 Mbps
Movie name : MARVEL’S CAPTAIN AMERICA: THE WINTER SOLDIER - BLU-RAY 3D
Encoded date : UTC 2015-09-06 20:04:55
Writing application : MakeMKV v1.9.5 win(x64-release)
Writing library : libmakemkv v1.9.5 (1.3.0/1.4.1) win(x64-release)

Video
ID : 1
Format : AVC
Format/Info : Advanced Video Codec
Format profile : Stereo High@L4.1 / High@L4.1
MultiView_Count : 2
Format settings, CABAC : Yes
Format settings, ReFrames : 3 frames
Codec ID : V_MPEG4/ISO/AVC
Duration : 2h 15mn
Bit rate mode : Variable
Maximum bit rate : 35.0 Mbps
Width : 1 920 pixels
Height : 1 080 pixels
Display aspect ratio : 16:9
Frame rate mode : Constant
Frame rate : 23.976 (24000/1001) fps
Color space : YUV
Chroma subsampling : 4:2:0
Bit depth : 8 bits
Scan type : Progressive
Language : English
Default : No
Forced : No

Audio #1
ID : 2
Format : DTS
Format/Info : Digital Theater Systems
Format profile : MA / Core
Mode : 16
Format settings, Endianness : Big
Codec ID : A_DTS
Duration : 2h 15mn
Bit rate mode : Variable / Constant
Bit rate : Unknown / 1 509 Kbps
Channel(s) : 8 channels / 6 channels
Channel positions : Front: L C R, Side: L R, Back: L R, LFE / Front: L C R, Side: L R, LFE
Sampling rate : 48.0 KHz
Frame rate : 93.750 fps (512 spf)
Bit depth : 24 bits
Compression mode : Lossless / Lossy
Title : Surround 7.1
Language : English
Default : Yes
Forced : No

Audio #2
ID : 3
Format : DTS
Format/Info : Digital Theater Systems
Mode : 16
Format settings, Endianness : Big
Codec ID : A_DTS
Duration : 2h 15mn
Bit rate mode : Constant
Bit rate : 1 509 Kbps
Channel(s) : 6 channels
Channel positions : Front: L C R, Side: L R, LFE
Sampling rate : 48.0 KHz
Frame rate : 93.750 fps (512 spf)
Bit depth : 24 bits
Compression mode : Lossy
Stream size : 1.43 GiB (4%)
Title : Surround 5.1
Language : English
Default : No
Forced : No

Audio #3
ID : 4
Format : DTS
Format/Info : Digital Theater Systems
Format profile : HRA / Core
Mode : 16
Format settings, Endianness : Big
Codec ID : A_DTS
Duration : 2h 15mn
Bit rate mode : Constant
Bit rate : 2 046 Kbps / 1 509 Kbps
Channel(s) : 6 channels
Channel positions : Front: L C R, Side: L R, LFE
Sampling rate : 48.0 KHz
Frame rate : 93.750 fps (512 spf)
Bit depth : 24 bits
Compression mode : Lossy
Stream size : 1.94 GiB (5%)
Title : Surround 5.1
Language : German
Default : No
Forced : No

Audio #4
ID : 5
Format : DTS
Format/Info : Digital Theater Systems
Mode : 16
Format settings, Endianness : Big
Codec ID : A_DTS
Duration : 2h 15mn
Bit rate mode : Constant
Bit rate : 1 509 Kbps
Channel(s) : 6 channels
Channel positions : Front: L C R, Side: L R, LFE
Sampling rate : 48.0 KHz
Frame rate : 93.750 fps (512 spf)
Bit depth : 24 bits
Compression mode : Lossy
Stream size : 1.43 GiB (4%)
Title : Surround 5.1
Language : German
Default : No
Forced : No

Text #1
ID : 6
Format : PGS
Codec ID : S_HDMV/PGS
Codec ID/Info : Picture based subtitle format used on BDs/HD-DVDs
Language : English
Default : No
Forced : No

Text #2
ID : 8
Format : PGS
Codec ID : S_HDMV/PGS
Codec ID/Info : Picture based subtitle format used on BDs/HD-DVDs
Language : German
Default : No
Forced : No

Text #3
ID : 10
Format : PGS
Codec ID : S_HDMV/PGS
Codec ID/Info : Picture based subtitle format used on BDs/HD-DVDs
Language : English
Default : No
Forced : No

Text #4
ID : 12
Format : PGS
Codec ID : S_HDMV/PGS
Codec ID/Info : Picture based subtitle format used on BDs/HD-DVDs
Language : German
Default : No
Forced : No

Menu
00:00:00.000 : en:Chapter 01
00:03:28.666 : en:Chapter 02
00:13:31.727 : en:Chapter 03
00:17:57.868 : en:Chapter 04
00:22:25.302 : en:Chapter 05
00:33:20.415 : en:Chapter 06
00:41:27.276 : en:Chapter 07
00:51:37.302 : en:Chapter 08
00:58:23.958 : en:Chapter 09
01:07:40.347 : en:Chapter 10
01:16:22.202 : en:Chapter 11
01:24:43.078 : en:Chapter 12
01:32:17.698 : en:Chapter 13
01:37:06.612 : en:Chapter 14
01:49:13.088 : en:Chapter 15
01:55:03.730 : en:Chapter 16
02:01:11.055 : en:Chapter 17
02:06:22.241 : en:Chapter 18
`

6

I copied the problematic video file on a usb stick and now it is playing perfectly, wow! So the problems seems to be with the NAS and specifically kodi’s/OSMC’s file handling. How can I fix this?

There is my current log:
http://paste.osmc.io/oxowotimuw.vhdl

Thank you.

7

Probably more specifically the NAS or some issue with your network. Forgive us if no one is willing to download your log file from dropbox. It would be preferred that you use paste.osmc.io or some similar paste site. We have no desire to have to clean our systems of random logs after downloading to view them once…

8

Depends what you are using, NFS is prefered over SMB and offcourse wired over wireless…
Maybe the guys have some sort of extra advanced settings that can help to buffer or somesort :relaxed:

9

all right, I uploaded the log on http://paste.osmc.io/.

10

we need the url provided after you save the log.

11

http://paste.osmc.io/oxowotimuw.vhdl

13

Does the file play without issue if you access/play it by Video>files>nfslocation>file?
