HDR10+ material not playing with Kodi 21.2 (90% of the time) but will with 20.2

Help and Support Vero V
87

OK, logs with the Vero V connected directly to the panasonic TV. Played guardians first and then Dune 2 (Dolby vision) second. Both HDR10+ as before. Both played fine (but both only tried once).

  1. with force YUV422: https://paste.osmc.tv/useveqazaf
  2. without force YUV422: https://paste.osmc.tv/nuwenuqavu

INterestingly, and it may be the first time I’m noticing this, the “dolby atmos” flag/text showed on the tv along with the video input for both, but neither time did the “Dolby Vision” flag show for the Dune 2 track. Which the tv does when showing a dolby vision netflix track for instance. So it should have come up from the Dune 2 track.

88

The result of cat /sys/class/amhdmitx/amhdmitx0/edid when connected through the denon not playing any track. 4K/8K signal format set to “Enhanced” (default) TV set to “mode 2”, also default.
Rx Manufacturer Name: DON
Rx Product Code: 006d
Rx Serial Number: 01010101
Rx Product Name: DENON-AVRHD
Manufacture Week: 0
Manufacture Year: 2020
Physical size(mm): 1280 x 720
EDID Version: 1.3
EDID block number: 0x1
blk0 chksum: 0x02
Source Physical Address[a.b.c.d]: 2.5.0.0
YCC support 0x03, VIC (native 97):
ColorDeepSupport 0xb8 10/12/16/Y444 1/1/0/1
97 96 16 31 102 101 5 20 32 33 34 4 19 3 18 7 22 93 94 95 98 99 100 95 94 93 98
Audio {format, channel, freq, cce}
{1, 7, 0x7f, 0x07}
{7, 5, 0x1e, 0xc0}
{2, 5, 0x07, 0x50}
{11, 7, 0x7e, 0x03}
{10, 7, 0x06, 0x03}
{12, 7, 0x7e, 0x03}
{9, 5, 0x02, 0x00}
{11, 7, 0x7e, 0x01}
Speaker Allocation: 0x5f
Vendor: 0x000c03 (HDMI device)
MaxTMDSClock1 300 MHz
Vendor2: 0xc45dd8
MaxTMDSClock2 600 MHz
vLatency: Invalid/Unknown
aLatency: Invalid/Unknown
i_vLatency: Invalid/Unknown
i_aLatency: Invalid/Unknown
Colorimetry: 0xdf
SCDC: 1
RR_Cap: 0
LTE_340M_Scramble: 0
DolbyVision2 HDR/15 DeepColor
checkvalue: 0x028f0000

89

No. Your TV does not do TV-led DV:

====================== Dolby Vision Cap =================== wR0bk595
DolbyVision RX support list:
VSVDB Version: V2
2160p60hz: 1
Support mode:
  LL_YCbCr_422_12BIT
IEEEOUI: 0x00d046
EMP: 0
VSVDB: eb0146d000440370805e7594

Vero cannot do player-led DV and output LLDV so it will process the HDR10+ instead. That Dolby Vision Cap is the same whether you are connected direct to TV or to the AVR so there’s no confusion there.

90

Yup. That’s what we saw in the first log you posted, but not in the one from Vero 4k.

91

Logs through Vero V to denon with Force YUV422 ON, same settings as above. THis time neither track would play when tried 2 times each, then followed with a 4K non HDR10+ (but only HDR10) track last which did play.
https://paste.osmc.tv/botalabiva
result of cat /sys/class/amhdmitx/amhdmitx0/edid after this:
Rx Manufacturer Name: DON
Rx Product Code: 006d
Rx Serial Number: 01010101
Rx Product Name: DENON-AVRHD
Manufacture Week: 0
Manufacture Year: 2020
Physical size(mm): 1280 x 720
EDID Version: 1.3
EDID block number: 0x1
blk0 chksum: 0x02
Source Physical Address[a.b.c.d]: 2.5.0.0
YCC support 0x03, VIC (native 97):
ColorDeepSupport 0xb8 10/12/16/Y444 1/1/0/1
97 96 16 31 102 101 5 20 32 33 34 4 19 3 18 7 22 93 94 95 98 99 100 95 94 93 98
Audio {format, channel, freq, cce}
{1, 7, 0x7f, 0x07}
{7, 5, 0x1e, 0xc0}
{2, 5, 0x07, 0x50}
{11, 7, 0x7e, 0x03}
{10, 7, 0x06, 0x03}
{12, 7, 0x7e, 0x03}
{9, 5, 0x02, 0x00}
{11, 7, 0x7e, 0x01}
Speaker Allocation: 0x5f
Vendor: 0x000c03 (HDMI device)
MaxTMDSClock1 300 MHz
Vendor2: 0xc45dd8
MaxTMDSClock2 600 MHz
vLatency: Invalid/Unknown
aLatency: Invalid/Unknown
i_vLatency: Invalid/Unknown
i_aLatency: Invalid/Unknown
Colorimetry: 0xdf
SCDC: 1
RR_Cap: 0
LTE_340M_Scramble: 0
DolbyVision2 HDR/15 DeepColor
checkvalue: 0x028f0000

92

All these above are input 2 on the TV which is the ARC input (output?? whatever) . Will try with 1.

93

Thanks, but it’s the Denon which seems to be choking here, not the Panny. Still trying without ARC might be worth a go.

1 Like
94

Probably no help but more info:
osmc@osmc:~$ cat /sys/devices/virtual/amhdmitx/amhdmitx0/disp_cap
480p60hz
576p50hz
720p50hz
720p60hz
1080p24hz
1080p25hz
1080p30hz
1080p50hz
1080p60hz
2160p24hz
2160p25hz
2160p30hz
2160p50hz
2160p60hz*
smpte24hz
smpte25hz
smpte30hz
smpte50hz
smpte60hz
640x480p60hz
1024x768p60hz

98

Sorry, I’ve been traveling a bit and haven’t followed up.

I saw the other posts about updating using the staging repository. Tried that. No help.

Saw posts from Sam suggesting changing refresh rate from “Start/Stop” to “Always”. Tried that. No help.

The problem seems only to occur on TV episodes. I have yet to find a movie - 1080p or 4K, HDR or SDR - that causes this. And it’s only certain TV episodes that do it. For example, I have “Star Trek Deep Space Nine” that I ripped from my DVD collection. That plays fine. However, I partake of the “DS9 Upscale Project” where they produce 1080p and 4K AI upscales of this series. None of these will play on the Vero V. I get similar results for rips of “The Grand Tour” and “Clarkson’s Farm” but only the 4K rips. The 1080p rips play fine.

I tried re-encoding the offending files using Handbrake. No matter what I try, it won’t play. The “Grand Tour” issues are particularly vexing, as all of these used to play just fine on the Vero V.

UPDATE: For reference, I have a Marantz SR5012 AVR and Samsung TV. If I bypass the Marantz, these seem to play. So it seems to be something the Vero is passing to the AVR that it doesn’t like. Resolution? Refresh rate? Aspect ratio? I have no idea. When it fails, I get audio but no picture. The Marantz displays the “No Source” warning screen.

osmc@osmc:~$ cat /sys/devices/virtual/amhdmitx/amhdmitx0/disp_cap
480p60hz
576p50hz
720p50hz
720p60hz
1080p24hz
1080p25hz
1080p30hz
1080p50hz
1080p60hz
1080p120hz
2160p24hz
2160p25hz
2160p30hz
2160p50hz
2160p60hz*
smpte24hz
smpte25hz
smpte30hz
smpte50hz
smpte60hz
640x480p60hz
800x600p60hz
1024x768p60hz
1152x864p75hz
1280x800p60hz
1280x1024p60hz
1440x900p60hz
1600x900p60hz
1680x1050p60hz

osmc@osmc:~$ cat /sys/class/amhdmitx/amhdmitx0/edid
Rx Manufacturer Name: MJI
Rx Product Code: 003e
Rx Serial Number: 01010101
Rx Product Name: marantz-AVR
Manufacture Week: 0
Manufacture Year: 2017
Physical size(mm): 1650 x 930
EDID Version: 1.3
EDID block number: 0x1
blk0 chksum: 0xf8
Source Physical Address[a.b.c.d]: 1.5.0.0
YCC support 0x03, VIC (native 97):
ColorDeepSupport 0xb8 10/12/16/Y444 1/1/0/1
97 16 31 4 19 5 20 32 33 34 93 94 95 96 101 102 98 99 100 7 22 3 18 63 64 95 94 93 98
Audio {format, channel, freq, cce}
{1, 1, 0x07, 0x07}
{2, 5, 0x07, 0x50}
{10, 7, 0x07, 0x01}
Speaker Allocation: 0x01
Vendor: 0x000c03 (HDMI device)
MaxTMDSClock1 300 MHz
Vendor2: 0xc45dd8
MaxTMDSClock2 600 MHz
ALLM: 1
vLatency: Invalid/Unknown
aLatency: Invalid/Unknown
i_vLatency: Invalid/Unknown
i_aLatency: Invalid/Unknown
Colorimetry: 0xc3
SCDC: 1
RR_Cap: 0
LTE_340M_Scramble: 0
HDR/13 DeepColor
checkvalue: 0xf81b0000

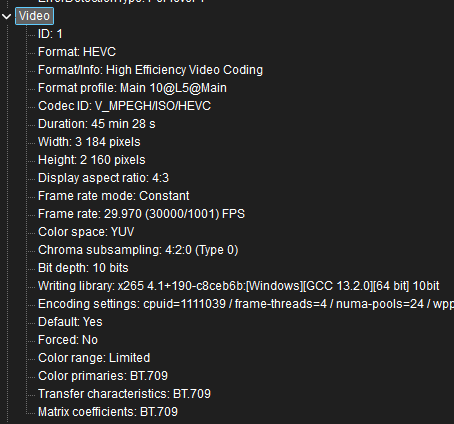

Here’s the MediaInfo data on the DS9 file I’m trying to play:

image454×424 8.35 KB

99

First time I’ve come across a 4k file with 4:3 aspect ratio. I couldn’t see where to obtain those upscales. Can you point me to that or upload a sample somewhere? Are the other TV rips strange aspect ratios? Grand Tour and Clarkson’s Farm can’t be 4:3, surely?

100

Agreed. I don’t think The Prisoner has been restored in 4K just yet…

101

Further to my issue, If I set the TV to static HDR (not dynamic), the vero picks up on this and plays these problem titles as basic HDR10 no issues at all. (no “+”)

102

Further: Panasonic TV HDR settings.

During a blank screen and audio episode, I can make it play (DURING ACTUAL PLAYBACK) by nothing more than turning the TV HDR setting from “dynamic” to “static” (which immediately shows the video and audio in HDR10 only), and then back to “Dynamic” which will then show the HDR10+ logo on the TV and continue with HDR10+ playback.

1 Like
103

Interesting. Any chance of a log when that happens?

104

most certainly: https://paste.osmc.tv/tabureyuke

105

I thought the august update had sorted this, restarted and played both tracks couple times, then just wouldn’t play either. So, no…

106

The August update fixed some others’ issues but not yours, I’m afraid. We still don’t know what the problem is but will work on it.

There may be some clues to that here No Dolby Atmos with Vero V - #8 by pharcycle

107

you answered that above with the TV not being able to do player based DV or something along those lines. No issue with atmos for me.
