Screen image oversized depending on frequency

Help and Support
1

I’ve set OSMC to 1080p and set it to change the refresh rate automatically.

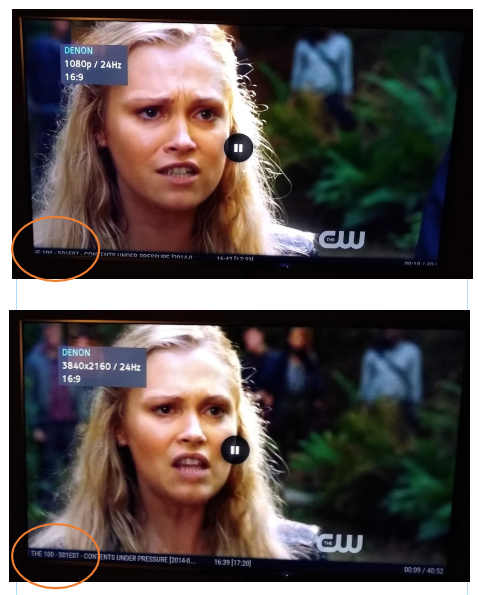

The problem I have is that if the Hz drops to 24, then the image is oversized, and part of the screen edges are no longer visible.

osmc%20over%20size%20at%2024Hz
osmc%20over%20size%20at%2024Hz478×595 304 KB

If I set OSMC to either 2160p or 1080p and disable to screen refresh changes, then the image fits perfectly.

Is this a “feature of my TV” or is there a setting I can change to fix this?

2

Check the calibration Settings-System-Display-Calibration-Video calibration. Settings are saved for each resolution.

But first set your TV to not overscan.

3

Thanks again - it was a TV issue.

1 Like
