Did you contact support?
Vero 5, from the soft launch, September 20, 2023.
I’m posting this in case it’s helpful to someone else, or yourself sam in diagnosing the issue.
So I experienced the same issue, my USB3 port stopped working first, only noticed when my usual USB stick I’d plug in failed to mount a few months ago, so all I did was use the USB2 port and it was all fine, so I lived with the none working USB3 port. (What I do also experience when I plug in a USB device is that the TV display flicks very briefly to black and then displays the osmc interface again)
Then the remote stopped working, I also lived with this for a while as I could use my Sony TV remote via the TV to control the vero box.
Tried all the usual, changed the battery, took the battery from my working vero 4k remote, tried to re-pair the device nothing changed. And yes, during all this I had a nice blue light flashing away on the end of the remote every time I pressed a button or solid light when trying to pair.

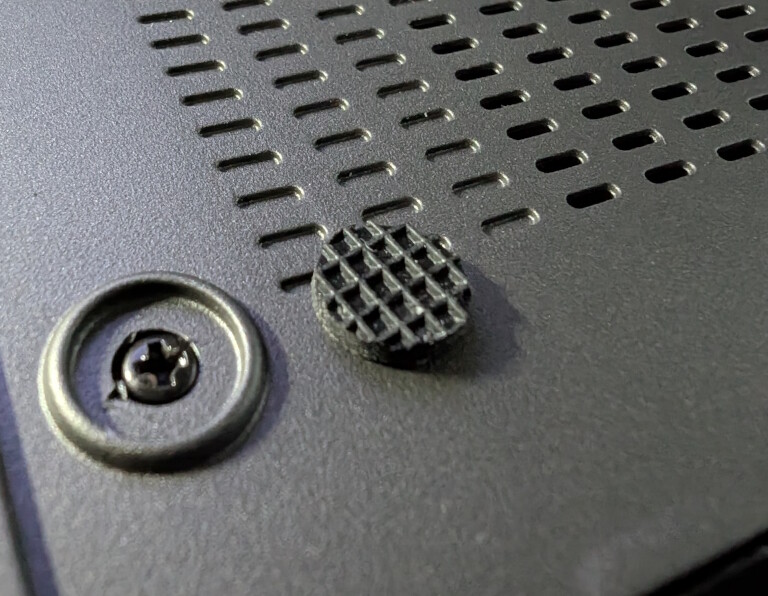

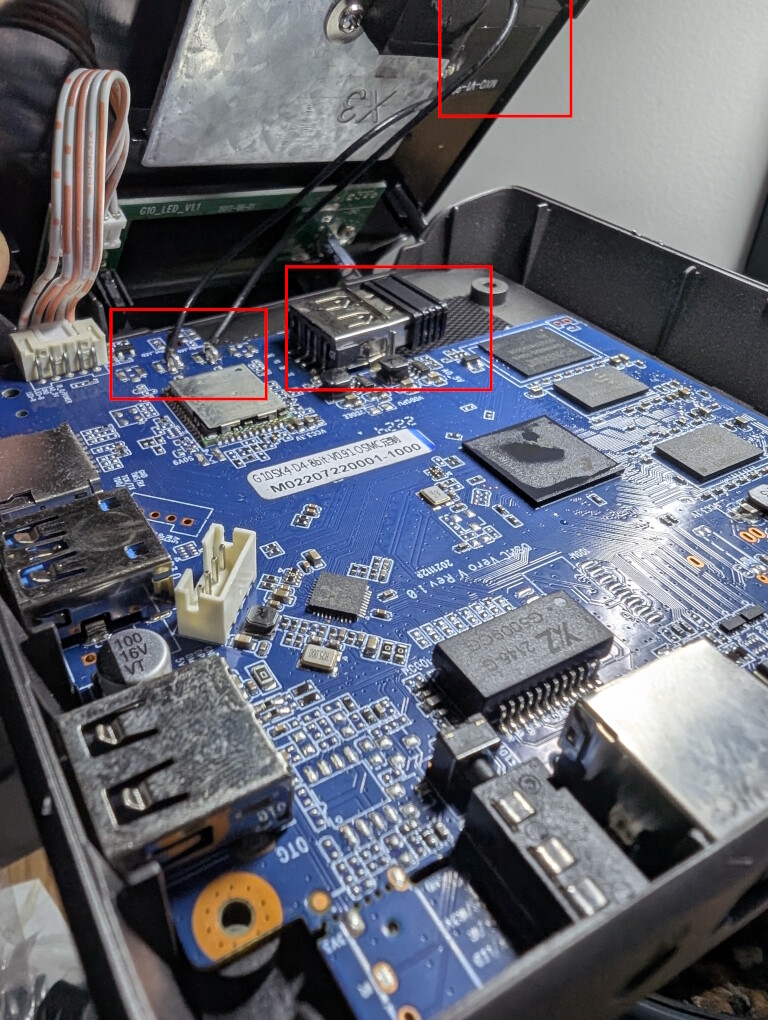

Today, I decided to just open it up to take the adapter out from inside. Feel I need to state, do this at your own risk. There’s four screws under the feet and then the top pops off with a few clips holding it in place, don’t rip the top away as the aerials are attached on short wires.
I took the adapter out and have tired it in both the external USB3 and USB2 ports.
Frankly my USB3 port seems dead… and I’ll assume the internal port (didn’t try plugging anything else into that before closing it back up), as the remote now works again, I’ve plugged the adapter into the external USB2 port and the remote is working fine.
I’ve actually had to plug a USB splitter into the external USB2 port as well to get two USB ports, but the remote worked fine with the adapter plugged in directly and also via the adapter now.
2026-01-27 16:34:39.425 T:2919 debug <general>: CLibInputHandler::DeviceRemoved - keyboard type device removed: OSMC Remote Controller OSMC Remote Controller (event7)
2026-01-27 16:34:39.615 T:2919 debug <general>: CLibInputHandler::DeviceRemoved - pointer type device removed: OSMC Remote Controller OSMC Remote Controller (event8)
2026-01-27 16:34:39.615 T:2919 debug <general>: CLibInputHandler::DeviceRemoved - keyboard type device removed: OSMC Remote Controller OSMC Remote Controller (event8)
2026-01-27 16:34:39.707 T:2958 info <general>: UnregisterRemovedDevices - device removed from hid//sys/devices/platform/fde00000.dwc3/xhci-hcd.0.auto/usb1/1-2: OSMC RF Remote (2017:1690)
2026-01-27 16:34:39.707 T:2958 debug <general>: ~CPeripheralHID - switching active keymapping to: default
2026-01-27 16:34:39.714 T:2958 info <general>: Loading special://xbmc/system/keymaps/appcommand.xml
2026-01-27 16:34:39.714 T:2958 info <general>: Loading special://xbmc/system/keymaps/customcontroller.AppleRemote.xml
2026-01-27 16:34:39.716 T:2958 info <general>: Loading special://xbmc/system/keymaps/customcontroller.Harmony.xml
2026-01-27 16:34:39.717 T:2958 info <general>: Loading special://xbmc/system/keymaps/customcontroller.SiriRemote.xml
2026-01-27 16:34:39.718 T:2958 info <general>: Loading special://xbmc/system/keymaps/gamepad.xml
2026-01-27 16:34:39.719 T:2958 info <general>: Loading special://xbmc/system/keymaps/hama_mce.xml
2026-01-27 16:34:39.719 T:2958 info <general>: Loading special://xbmc/system/keymaps/joystick.xml
2026-01-27 16:34:39.720 T:2958 info <general>: Loading special://xbmc/system/keymaps/keyboard.xml
2026-01-27 16:34:39.724 T:2958 info <general>: Loading special://xbmc/system/keymaps/mouse.xml
2026-01-27 16:34:39.725 T:2958 info <general>: Loading special://xbmc/system/keymaps/osmc_classic.xml
2026-01-27 16:34:39.725 T:2958 info <general>: Loading special://xbmc/system/keymaps/remote.xml
2026-01-27 16:34:39.728 T:2958 info <general>: Loading special://xbmc/system/keymaps/touchscreen.xml
2026-01-27 16:34:45.300 T:2995 debug <CWebserver[80]>: request received for /jsonrpc
2026-01-27 16:34:47.159 T:2958 debug <general>: GetMappingForDevice - device (2017:1690) mapped to OSMC RF Remote (type = hid)
2026-01-27 16:34:47.163 T:2958 debug <general>: InitialiseFeature - adding keymapping for: osmc
2026-01-27 16:34:47.168 T:2958 info <general>: Loading special://xbmc/system/keymaps/appcommand.xml
2026-01-27 16:34:47.169 T:2958 info <general>: Loading special://xbmc/system/keymaps/customcontroller.AppleRemote.xml
2026-01-27 16:34:47.170 T:2958 info <general>: Loading special://xbmc/system/keymaps/customcontroller.Harmony.xml
2026-01-27 16:34:47.171 T:2958 info <general>: Loading special://xbmc/system/keymaps/customcontroller.SiriRemote.xml
2026-01-27 16:34:47.172 T:2958 info <general>: Loading special://xbmc/system/keymaps/gamepad.xml
2026-01-27 16:34:47.173 T:2958 info <general>: Loading special://xbmc/system/keymaps/hama_mce.xml
2026-01-27 16:34:47.174 T:2958 info <general>: Loading special://xbmc/system/keymaps/joystick.xml
2026-01-27 16:34:47.176 T:2958 info <general>: Loading special://xbmc/system/keymaps/keyboard.xml
2026-01-27 16:34:47.181 T:2958 info <general>: Loading special://xbmc/system/keymaps/mouse.xml
2026-01-27 16:34:47.181 T:2958 info <general>: Loading special://xbmc/system/keymaps/osmc_classic.xml
2026-01-27 16:34:47.182 T:2958 info <general>: Loading special://xbmc/system/keymaps/remote.xml
2026-01-27 16:34:47.185 T:2958 info <general>: Loading special://xbmc/system/keymaps/touchscreen.xml
2026-01-27 16:34:47.187 T:2958 info <general>: Loading special://xbmc/system/keymaps/osmc/osmc_remote.xml
2026-01-27 16:34:47.190 T:2958 debug <general>: InitialiseFeature - initialised HID device (2017:1690)
2026-01-27 16:34:47.191 T:2958 debug <general>: Initialise - initialised peripheral on '/sys/devices/platform/fde00000.dwc3/xhci-hcd.0.auto/usb1/1-2' with 1 features and 0 sub devices
2026-01-27 16:34:47.191 T:2958 info <general>: Register - new hid device registered on usb->/sys/devices/platform/fde00000.dwc3/xhci-hcd.0.auto/usb1/1-2: OSMC RF Remote (2017:1690)
2026-01-27 16:34:47.285 T:2919 debug <general>: CLibInputHandler::DeviceAdded - pointer type device added: OSMC Remote Controller OSMC Remote Controller (event8)
2026-01-27 16:34:47.285 T:2919 debug <general>: CLibInputHandler::DeviceAdded - keyboard type device added: OSMC Remote Controller OSMC Remote Controller (event8)
2026-01-27 16:34:47.285 T:2919 debug <general>: CLibInputKeyboard::GetRepeat - could not get key repeat for event8 (Function not implemented)
2026-01-27 16:34:47.285 T:2919 debug <general>: CLibInputKeyboard::GetRepeat - delay: 750ms repeat: 80ms for OSMC Remote Controller OSMC Remote Controller (event8)
2026-01-27 16:34:47.341 T:2919 debug <general>: CLibInputHandler::DeviceAdded - keyboard type device added: OSMC Remote Controller OSMC Remote Controller (event7)
2026-01-27 16:34:47.341 T:2919 debug <general>: CLibInputKeyboard::GetRepeat - delay: 750ms repeat: 80ms for OSMC Remote Controller OSMC Remote Controller (event7)
2026-01-27 16:34:54.896 T:2836 debug <general>: ------ Window Init () ------
Happy to test any other USB devices in USB 2/3 and provide logs.
1 Like
A more complete log off unplugging the adapter from USB 2 and plugging it into the USB 3 port whilst pressing the UP button on the Sony TV remote inbetween.
## PRESSING UP ON THE SONY TV REMOTE
2026-01-27 17:28:16.550 T:3017 debug <general>: PushCecKeypress - received key a6 duration 0
2026-01-27 17:28:16.580 T:2856 debug <general>: HandleKey: 166 (0xa6, obc89) pressed, window 10016, action is Up
2026-01-27 17:28:16.580 T:2988 info <general>: CActiveAESink::OpenSink - initialize sink
2026-01-27 17:28:16.581 T:2988 debug <general>: CActiveAESink::OpenSink - trying to open device ALSA:default
2026-01-27 17:28:16.581 T:2988 info <general>: CAESinkALSA::Initialize - Requested layout FL, FR
2026-01-27 17:28:16.581 T:2988 info <general>: CAESinkALSA::Initialize - set digital codec 0
2026-01-27 17:28:16.581 T:2988 debug <general>: CAESinkALSA::Initialize -- unmuting HDMI
2026-01-27 17:28:16.581 T:2988 info <general>: CAESinkALSA::Initialize - Attempting to open device "default"
2026-01-27 17:28:16.600 T:2988 info <general>: CAESinkALSA::Initialize - Opened device "default"
2026-01-27 17:28:16.601 T:2988 info <general>: CAESinkALSA::InitializeHW - Your hardware does not support AE_FMT_FLOAT, trying other formats
2026-01-27 17:28:16.601 T:2988 info <general>: CAESinkALSA::InitializeHW - Using data format AE_FMT_S24NE4
2026-01-27 17:28:16.601 T:2988 debug <general>: CAESinkALSA::InitializeHW - Request: periodSize 2205, bufferSize 8820
2026-01-27 17:28:16.602 T:2988 debug <general>: CAESinkALSA::InitializeHW - Got: periodSize 2205, bufferSize 8820
2026-01-27 17:28:16.602 T:2988 debug <general>: CAESinkALSA::InitializeHW - Setting timeout to 200 ms
2026-01-27 17:28:16.602 T:2988 info <general>: CAESinkALSA::Initialize - speaker layout 0
2026-01-27 17:28:16.602 T:2988 debug <general>: CAESinkALSA::GetChannelLayout - Input Channel Count: 2 Output Channel Count: 2
2026-01-27 17:28:16.603 T:2988 debug <general>: CAESinkALSA::GetChannelLayout - Requested Layout: FL, FR
2026-01-27 17:28:16.603 T:2988 debug <general>: CAESinkALSA::GetChannelLayout - Got Layout: FL, FR (ALSA: FL FR CEA: 0 )
2026-01-27 17:28:16.603 T:2988 debug <general>: CActiveAESink::OpenSink - ALSA Initialized:
2026-01-27 17:28:16.603 T:2988 debug <general>: Output Device : Default (AML-AUGESOUND: HDMI, S/PDIF & analogue)
2026-01-27 17:28:16.603 T:2988 debug <general>: Sample Rate : 44100
2026-01-27 17:28:16.603 T:2988 debug <general>: Sample Format : AE_FMT_S24NE4
2026-01-27 17:28:16.603 T:2988 debug <general>: Channel Count : 2
2026-01-27 17:28:16.603 T:2988 debug <general>: Channel Layout: FL, FR
2026-01-27 17:28:16.603 T:2988 debug <general>: Frames : 2205
2026-01-27 17:28:16.603 T:2988 debug <general>: Frame Size : 8
2026-01-27 17:28:16.746 T:3017 debug <general>: PushCecKeypress - received key a6 duration 196
## TAKING THE REMOTE ADAPTER OUT OF USB 2 AND PLUGGING IT INTO USB 3
2026-01-27 17:28:20.127 T:2966 debug <general>: CLibInputHandler::DeviceRemoved - keyboard type device removed: OSMC Remote Controller OSMC Remote Controller (event5)
2026-01-27 17:28:20.307 T:2966 debug <general>: CLibInputHandler::DeviceRemoved - pointer type device removed: OSMC Remote Controller OSMC Remote Controller (event6)
2026-01-27 17:28:20.307 T:2966 debug <general>: CLibInputHandler::DeviceRemoved - keyboard type device removed: OSMC Remote Controller OSMC Remote Controller (event6)
2026-01-27 17:28:20.422 T:3005 info <general>: UnregisterRemovedDevices - device removed from hid//sys/devices/platform/fde00000.dwc3/xhci-hcd.0.auto/usb1/1-2: OSMC RF Remote (2017:1690)
2026-01-27 17:28:20.423 T:3005 debug <general>: ~CPeripheralHID - switching active keymapping to: default
2026-01-27 17:28:20.430 T:3005 info <general>: Loading special://xbmc/system/keymaps/appcommand.xml
2026-01-27 17:28:20.430 T:3005 info <general>: Loading special://xbmc/system/keymaps/customcontroller.AppleRemote.xml
2026-01-27 17:28:20.431 T:3005 info <general>: Loading special://xbmc/system/keymaps/customcontroller.Harmony.xml
2026-01-27 17:28:20.433 T:3005 info <general>: Loading special://xbmc/system/keymaps/customcontroller.SiriRemote.xml
2026-01-27 17:28:20.433 T:3005 info <general>: Loading special://xbmc/system/keymaps/gamepad.xml
2026-01-27 17:28:20.434 T:3005 info <general>: Loading special://xbmc/system/keymaps/hama_mce.xml
2026-01-27 17:28:20.435 T:3005 info <general>: Loading special://xbmc/system/keymaps/joystick.xml
2026-01-27 17:28:20.436 T:3005 info <general>: Loading special://xbmc/system/keymaps/keyboard.xml
2026-01-27 17:28:20.440 T:3005 info <general>: Loading special://xbmc/system/keymaps/mouse.xml
2026-01-27 17:28:20.440 T:3005 info <general>: Loading special://xbmc/system/keymaps/osmc_classic.xml
2026-01-27 17:28:20.440 T:3005 info <general>: Loading special://xbmc/system/keymaps/remote.xml
2026-01-27 17:28:20.443 T:3005 info <general>: Loading special://xbmc/system/keymaps/touchscreen.xml
## PRESSING UP ON THE SONY TV REMOTE
2026-01-27 17:28:30.677 T:3017 debug <general>: PushCecKeypress - received key a6 duration 0
2026-01-27 17:28:30.686 T:2856 debug <general>: HandleKey: 166 (0xa6, obc89) pressed, window 10016, action is Up
2026-01-27 17:28:30.687 T:2988 info <general>: CActiveAESink::OpenSink - initialize sink
2026-01-27 17:28:30.687 T:2988 debug <general>: CActiveAESink::OpenSink - trying to open device ALSA:default
2026-01-27 17:28:30.687 T:2988 info <general>: CAESinkALSA::Initialize - Requested layout FL, FR
2026-01-27 17:28:30.687 T:2988 info <general>: CAESinkALSA::Initialize - set digital codec 0
2026-01-27 17:28:30.687 T:2988 debug <general>: CAESinkALSA::Initialize -- unmuting HDMI
2026-01-27 17:28:30.687 T:2988 info <general>: CAESinkALSA::Initialize - Attempting to open device "default"
2026-01-27 17:28:30.700 T:2988 info <general>: CAESinkALSA::Initialize - Opened device "default"
2026-01-27 17:28:30.701 T:2988 info <general>: CAESinkALSA::InitializeHW - Your hardware does not support AE_FMT_FLOAT, trying other formats
2026-01-27 17:28:30.701 T:2988 info <general>: CAESinkALSA::InitializeHW - Using data format AE_FMT_S24NE4
2026-01-27 17:28:30.701 T:2988 debug <general>: CAESinkALSA::InitializeHW - Request: periodSize 2205, bufferSize 8820
2026-01-27 17:28:30.702 T:2988 debug <general>: CAESinkALSA::InitializeHW - Got: periodSize 2205, bufferSize 8820
2026-01-27 17:28:30.702 T:2988 debug <general>: CAESinkALSA::InitializeHW - Setting timeout to 200 ms
2026-01-27 17:28:30.702 T:2988 info <general>: CAESinkALSA::Initialize - speaker layout 0
2026-01-27 17:28:30.703 T:2988 debug <general>: CAESinkALSA::GetChannelLayout - Input Channel Count: 2 Output Channel Count: 2
2026-01-27 17:28:30.703 T:2988 debug <general>: CAESinkALSA::GetChannelLayout - Requested Layout: FL, FR
2026-01-27 17:28:30.703 T:2988 debug <general>: CAESinkALSA::GetChannelLayout - Got Layout: FL, FR (ALSA: FL FR CEA: 0 )
2026-01-27 17:28:30.704 T:2988 debug <general>: CActiveAESink::OpenSink - ALSA Initialized:
2026-01-27 17:28:30.704 T:2988 debug <general>: Output Device : Default (AML-AUGESOUND: HDMI, S/PDIF & analogue)
2026-01-27 17:28:30.704 T:2988 debug <general>: Sample Rate : 44100
2026-01-27 17:28:30.704 T:2988 debug <general>: Sample Format : AE_FMT_S24NE4
2026-01-27 17:28:30.704 T:2988 debug <general>: Channel Count : 2
2026-01-27 17:28:30.704 T:2988 debug <general>: Channel Layout: FL, FR
2026-01-27 17:28:30.704 T:2988 debug <general>: Frames : 2205
2026-01-27 17:28:30.704 T:2988 debug <general>: Frame Size : 8
2026-01-27 17:28:30.921 T:3017 debug <general>: PushCecKeypress - received key a6 duration 243
## TAKING THE REMOTE ADAPTER OUT OF USB 3 AND PLUGGING IT INTO USB 2
2026-01-27 17:28:38.244 T:3005 debug <general>: GetMappingForDevice - device (2017:1690) mapped to OSMC RF Remote (type = hid)
2026-01-27 17:28:38.248 T:3005 debug <general>: InitialiseFeature - adding keymapping for: osmc
2026-01-27 17:28:38.252 T:3005 info <general>: Loading special://xbmc/system/keymaps/appcommand.xml
2026-01-27 17:28:38.252 T:3005 info <general>: Loading special://xbmc/system/keymaps/customcontroller.AppleRemote.xml
2026-01-27 17:28:38.253 T:3005 info <general>: Loading special://xbmc/system/keymaps/customcontroller.Harmony.xml
2026-01-27 17:28:38.254 T:3005 info <general>: Loading special://xbmc/system/keymaps/customcontroller.SiriRemote.xml
2026-01-27 17:28:38.255 T:3005 info <general>: Loading special://xbmc/system/keymaps/gamepad.xml
2026-01-27 17:28:38.256 T:3005 info <general>: Loading special://xbmc/system/keymaps/hama_mce.xml
2026-01-27 17:28:38.256 T:3005 info <general>: Loading special://xbmc/system/keymaps/joystick.xml
2026-01-27 17:28:38.257 T:3005 info <general>: Loading special://xbmc/system/keymaps/keyboard.xml
2026-01-27 17:28:38.261 T:3005 info <general>: Loading special://xbmc/system/keymaps/mouse.xml
2026-01-27 17:28:38.261 T:3005 info <general>: Loading special://xbmc/system/keymaps/osmc_classic.xml
2026-01-27 17:28:38.262 T:3005 info <general>: Loading special://xbmc/system/keymaps/remote.xml
2026-01-27 17:28:38.264 T:3005 info <general>: Loading special://xbmc/system/keymaps/touchscreen.xml
2026-01-27 17:28:38.265 T:3005 info <general>: Loading special://xbmc/system/keymaps/osmc/osmc_remote.xml
2026-01-27 17:28:38.269 T:3005 debug <general>: InitialiseFeature - initialised HID device (2017:1690)
2026-01-27 17:28:38.269 T:3005 debug <general>: Initialise - initialised peripheral on '/sys/devices/platform/fde00000.dwc3/xhci-hcd.0.auto/usb1/1-2' with 1 features and 0 sub devices
2026-01-27 17:28:38.269 T:3005 info <general>: Register - new hid device registered on usb->/sys/devices/platform/fde00000.dwc3/xhci-hcd.0.auto/usb1/1-2: OSMC RF Remote (2017:1690)
2026-01-27 17:28:38.398 T:2966 debug <general>: CLibInputHandler::DeviceAdded - keyboard type device added: OSMC Remote Controller OSMC Remote Controller (event5)
2026-01-27 17:28:38.398 T:2966 debug <general>: CLibInputKeyboard::GetRepeat - delay: 750ms repeat: 80ms for OSMC Remote Controller OSMC Remote Controller (event5)
2026-01-27 17:28:38.474 T:2966 debug <general>: CLibInputHandler::DeviceAdded - pointer type device added: OSMC Remote Controller OSMC Remote Controller (event6)
2026-01-27 17:28:38.474 T:2966 debug <general>: CLibInputHandler::DeviceAdded - keyboard type device added: OSMC Remote Controller OSMC Remote Controller (event6)
2026-01-27 17:28:38.475 T:2966 debug <general>: CLibInputKeyboard::GetRepeat - could not get key repeat for event6 (Function not implemented)
2026-01-27 17:28:38.475 T:2966 debug <general>: CLibInputKeyboard::GetRepeat - delay: 750ms repeat: 80ms for OSMC Remote Controller OSMC Remote Controller (event6)
## PRESSING UP ON THE SONY TV REMOTE
2026-01-27 17:28:43.725 T:3017 debug <general>: PushCecKeypress - received key a6 duration 0
2026-01-27 17:28:43.767 T:2856 debug <general>: HandleKey: 166 (0xa6, obc89) pressed, window 10016, action is Up
2026-01-27 17:28:43.767 T:2988 info <general>: CActiveAESink::OpenSink - initialize sink
2026-01-27 17:28:43.767 T:2988 debug <general>: CActiveAESink::OpenSink - trying to open device ALSA:default
2026-01-27 17:28:43.768 T:2988 info <general>: CAESinkALSA::Initialize - Requested layout FL, FR
2026-01-27 17:28:43.768 T:2988 info <general>: CAESinkALSA::Initialize - set digital codec 0
2026-01-27 17:28:43.768 T:2988 debug <general>: CAESinkALSA::Initialize -- unmuting HDMI
2026-01-27 17:28:43.768 T:2988 info <general>: CAESinkALSA::Initialize - Attempting to open device "default"
2026-01-27 17:28:43.779 T:2988 info <general>: CAESinkALSA::Initialize - Opened device "default"
2026-01-27 17:28:43.779 T:2988 info <general>: CAESinkALSA::InitializeHW - Your hardware does not support AE_FMT_FLOAT, trying other formats
2026-01-27 17:28:43.779 T:2988 info <general>: CAESinkALSA::InitializeHW - Using data format AE_FMT_S24NE4
2026-01-27 17:28:43.779 T:2988 debug <general>: CAESinkALSA::InitializeHW - Request: periodSize 2205, bufferSize 8820
2026-01-27 17:28:43.782 T:2988 debug <general>: CAESinkALSA::InitializeHW - Got: periodSize 2205, bufferSize 8820
2026-01-27 17:28:43.783 T:2988 debug <general>: CAESinkALSA::InitializeHW - Setting timeout to 200 ms
2026-01-27 17:28:43.783 T:2988 info <general>: CAESinkALSA::Initialize - speaker layout 0
2026-01-27 17:28:43.783 T:2988 debug <general>: CAESinkALSA::GetChannelLayout - Input Channel Count: 2 Output Channel Count: 2
2026-01-27 17:28:43.783 T:2988 debug <general>: CAESinkALSA::GetChannelLayout - Requested Layout: FL, FR
2026-01-27 17:28:43.784 T:2988 debug <general>: CAESinkALSA::GetChannelLayout - Got Layout: FL, FR (ALSA: FL FR CEA: 0 )
2026-01-27 17:28:43.784 T:2988 debug <general>: CActiveAESink::OpenSink - ALSA Initialized:
2026-01-27 17:28:43.784 T:2988 debug <general>: Output Device : Default (AML-AUGESOUND: HDMI, S/PDIF & analogue)
2026-01-27 17:28:43.784 T:2988 debug <general>: Sample Rate : 44100
2026-01-27 17:28:43.784 T:2988 debug <general>: Sample Format : AE_FMT_S24NE4
2026-01-27 17:28:43.785 T:2988 debug <general>: Channel Count : 2
2026-01-27 17:28:43.785 T:2988 debug <general>: Channel Layout: FL, FR
2026-01-27 17:28:43.785 T:2988 debug <general>: Frames : 2205
2026-01-27 17:28:43.785 T:2988 debug <general>: Frame Size : 8
2026-01-27 17:28:43.965 T:3017 debug <general>: PushCecKeypress - received key a6 duration 241
Please excuse the broken resolution, I got tired of trying to compress a gif to under 4mb.
I found an old USB stick that lights up.
My hand is partially blocking the USB light to first time I plug it back into the USB3, but the second time you can see it clear flash the once and that is it. Doesn’t register at all.
Edit:
I’ve also tried restoring the device to any earlier software version from Index of /osmc/osmc/download/installers/diskimages
I went back to OSMC_TGT_vero5_20230807.img.gz, made no difference, USB 3 port still didn’t work. And FYI anyone else thinkin of trying this, I had to reconfigure everything, it formats the device.
I don’t know if I should respond here, but my remote control is no longer working on my Vero. However, it does work again with the old remote from the 4K + dongle.
I’m going to correct assume you’ve done all the obvious like replace the battery and try pair it again?
Does the USBv3 (front most USB) port still work for you? If you plug a memory stick it, it mounts? Test it mounts first in the USBv2 port.
home + ok did the trick.. RTFM
(tried to pair only with home button) (both usb-ports working just fine)
thanks for the reply
If you don’t use the remote for an extended period of time, it can need re-pairing to function again.
Sam
Further update having gone through my collection of USB sticks.
I ordered a “SSK 256GB USB C USB3.2 Gen2 Solid State-Drive” (B0C36CXVP4) and I can confirm it is working in the front usb 3 port.
It’s the only USB3.2 Gen2 device I own it would seem! Other memory sticks continue to not mount in the front USB3 port, whereas this SSK device mounts fine and is functioning as expected.
So it would appear for me at the moment that the USB3 port supports USB3.2 Gen2 devices and not older USB versions, I’ll let someone explain to me how that works!
When I find a USB extension cable I’ll try the USB3.2 Gen2 device in the internal USB port.
That doesn’t make any sense to me.
Sam
To me neither. I’ll try make a clear video evidencing it all sometime in the next week.
1 Like
I’ve a 325mb video demonstrating this. What’s the best way to share this with yourself?
Sorry for the late reply. Can you upload it on something like Google Drive or Dropbox?
Sam
I’ve messaged you the link.
Watched it. So the black drive (SSK Drive) works in either port
But the orange coloured drive only works in the USB2 port?
What’s the spec of the orange drive you’re trying to attach?
Got a link?
Sam
That’s correct, the “SSK 256GB USB C USB3.2 Gen2 Solid State-Drive” drive works in either port.
The orange/red coloured drive only works in the USB2 port, that’s a very old “sdcz6-2048” SanDisk 2GB drive, as you can see in the video is the OSMCInstall drive I used to format the Vero5 back to a very early OS version before updating it again as versing the OS made no difference.
I used that drive as you can visibly see the single flash of the light when you connect it to the USB3 port instead of the constantly flashing light when connected to the USB2 port.
The second black USB stick in the video that also only works in the USB2 port is an old branded promotional USB stick that when thinking about it wasn’t very helpful as it’s all very generic details when you try identify it, it functions the same as the orange SanDisk, only in the USB2 port at the back.
Is there anything else you’d like me to test? I have more old USB2 drives lying around.
It’s old! SDCZ6-2048-A11-BN9 | SDCZ6-2048-A11-BN9 - SanDisk 2GB Cruzer Micro USB 2.0 Flash Drive - 2 GB - USB - External that in red, not sure what the “-A11-BN9” stands for.
Is the internal port functioning for either (or both) drives?
USB Device External USB2 External USB3 Internal SSK Mounts okay Mounts okay Nothing, no signs of life Red SanDisk 2GB Mounts okay Single light flash, doesn’t mount Single light flash, doesn’t mount Black Promo USB Mounts okay Nothing, no signs of life Nothing, no signs of life
Less signs of life from the internal port. I can’t get any of the three USB sticks to mount. The only sign of life is the single light flash on the Red SanDisk, the same symptoms as the external USB3 port.
I’ve sent you a message with the video in.
The black promo USB2 device in the external USB2 port (Vendor ID and Prod ID listed below)
osmc@osmc:~$ sudo cat /sys/kernel/debug/usb/devices
T: Bus=01 Lev=00 Prnt=00 Port=00 Cnt=00 Dev#= 1 Spd=480 MxCh= 2
B: Alloc= 0/800 us ( 0%), #Int= 0, #Iso= 0
D: Ver= 2.00 Cls=09(hub ) Sub=00 Prot=01 MxPS=64 #Cfgs= 1
P: Vendor=1d6b ProdID=0002 Rev= 4.09
S: Manufacturer=Linux 4.9.269-87-osmc xhci-hcd
S: Product=xHCI Host Controller
S: SerialNumber=xhci-hcd.0.auto
C:* #Ifs= 1 Cfg#= 1 Atr=e0 MxPwr= 0mA
I:* If#= 0 Alt= 0 #EPs= 1 Cls=09(hub ) Sub=00 Prot=00 Driver=hub
E: Ad=81(I) Atr=03(Int.) MxPS= 4 Ivl=256ms
T: Bus=01 Lev=01 Prnt=01 Port=01 Cnt=01 Dev#= 4 Spd=480 MxCh= 0
D: Ver= 2.00 Cls=00(>ifc ) Sub=00 Prot=00 MxPS=64 #Cfgs= 1
P: Vendor=058f ProdID=6387 Rev= 1.12
S: SerialNumber=14041486009209
C:* #Ifs= 1 Cfg#= 1 Atr=80 MxPwr=200mA
I:* If#= 0 Alt= 0 #EPs= 2 Cls=08(stor.) Sub=06 Prot=50 Driver=usb-storage
E: Ad=01(O) Atr=02(Bulk) MxPS= 512 Ivl=0ms
E: Ad=82(I) Atr=02(Bulk) MxPS= 512 Ivl=0ms
T: Bus=02 Lev=00 Prnt=00 Port=00 Cnt=00 Dev#= 1 Spd=5000 MxCh= 1
B: Alloc= 0/800 us ( 0%), #Int= 0, #Iso= 0
D: Ver= 3.00 Cls=09(hub ) Sub=00 Prot=03 MxPS= 9 #Cfgs= 1
P: Vendor=1d6b ProdID=0003 Rev= 4.09
S: Manufacturer=Linux 4.9.269-87-osmc xhci-hcd
S: Product=xHCI Host Controller
S: SerialNumber=xhci-hcd.0.auto
C:* #Ifs= 1 Cfg#= 1 Atr=e0 MxPwr= 0mA
I:* If#= 0 Alt= 0 #EPs= 1 Cls=09(hub ) Sub=00 Prot=00 Driver=hub
E: Ad=81(I) Atr=03(Int.) MxPS= 4 Ivl=256ms
osmc@osmc:~$
The orange/red SanDisk device in external USB2 (SanDisk, U3 Cruzer Micro)
osmc@osmc:~$ sudo cat /sys/kernel/debug/usb/devices
T: Bus=01 Lev=00 Prnt=00 Port=00 Cnt=00 Dev#= 1 Spd=480 MxCh= 2
B: Alloc= 0/800 us ( 0%), #Int= 0, #Iso= 0
D: Ver= 2.00 Cls=09(hub ) Sub=00 Prot=01 MxPS=64 #Cfgs= 1
P: Vendor=1d6b ProdID=0002 Rev= 4.09
S: Manufacturer=Linux 4.9.269-87-osmc xhci-hcd
S: Product=xHCI Host Controller
S: SerialNumber=xhci-hcd.0.auto
C:* #Ifs= 1 Cfg#= 1 Atr=e0 MxPwr= 0mA
I:* If#= 0 Alt= 0 #EPs= 1 Cls=09(hub ) Sub=00 Prot=00 Driver=hub
E: Ad=81(I) Atr=03(Int.) MxPS= 4 Ivl=256ms
T: Bus=01 Lev=01 Prnt=01 Port=01 Cnt=01 Dev#= 3 Spd=480 MxCh= 0
D: Ver= 2.00 Cls=00(>ifc ) Sub=00 Prot=00 MxPS=64 #Cfgs= 1
P: Vendor=0781 ProdID=5406 Rev= 2.00
S: Manufacturer=SanDisk
S: Product=U3 Cruzer Micro
S: SerialNumber=0165710A15C1D556
C:* #Ifs= 1 Cfg#= 1 Atr=80 MxPwr=200mA
I:* If#= 0 Alt= 0 #EPs= 2 Cls=08(stor.) Sub=06 Prot=50 Driver=usb-storage
E: Ad=81(I) Atr=02(Bulk) MxPS= 512 Ivl=0ms
E: Ad=02(O) Atr=02(Bulk) MxPS= 512 Ivl=0ms
T: Bus=02 Lev=00 Prnt=00 Port=00 Cnt=00 Dev#= 1 Spd=5000 MxCh= 1
B: Alloc= 0/800 us ( 0%), #Int= 0, #Iso= 0
D: Ver= 3.00 Cls=09(hub ) Sub=00 Prot=03 MxPS= 9 #Cfgs= 1
P: Vendor=1d6b ProdID=0003 Rev= 4.09
S: Manufacturer=Linux 4.9.269-87-osmc xhci-hcd
S: Product=xHCI Host Controller
S: SerialNumber=xhci-hcd.0.auto
C:* #Ifs= 1 Cfg#= 1 Atr=e0 MxPwr= 0mA
I:* If#= 0 Alt= 0 #EPs= 1 Cls=09(hub ) Sub=00 Prot=00 Driver=hub
E: Ad=81(I) Atr=03(Int.) MxPS= 4 Ivl=256ms
osmc@osmc:~$
And for completion, the SanDisk in the external USB3 port (nothing)
osmc@osmc:~$ sudo cat /sys/kernel/debug/usb/devices
T: Bus=01 Lev=00 Prnt=00 Port=00 Cnt=00 Dev#= 1 Spd=480 MxCh= 2
B: Alloc= 0/800 us ( 0%), #Int= 0, #Iso= 0
D: Ver= 2.00 Cls=09(hub ) Sub=00 Prot=01 MxPS=64 #Cfgs= 1
P: Vendor=1d6b ProdID=0002 Rev= 4.09
S: Manufacturer=Linux 4.9.269-87-osmc xhci-hcd
S: Product=xHCI Host Controller
S: SerialNumber=xhci-hcd.0.auto
C:* #Ifs= 1 Cfg#= 1 Atr=e0 MxPwr= 0mA
I:* If#= 0 Alt= 0 #EPs= 1 Cls=09(hub ) Sub=00 Prot=00 Driver=hub
E: Ad=81(I) Atr=03(Int.) MxPS= 4 Ivl=256ms
T: Bus=02 Lev=00 Prnt=00 Port=00 Cnt=00 Dev#= 1 Spd=5000 MxCh= 1
B: Alloc= 0/800 us ( 0%), #Int= 0, #Iso= 0
D: Ver= 3.00 Cls=09(hub ) Sub=00 Prot=03 MxPS= 9 #Cfgs= 1
P: Vendor=1d6b ProdID=0003 Rev= 4.09
S: Manufacturer=Linux 4.9.269-87-osmc xhci-hcd
S: Product=xHCI Host Controller
S: SerialNumber=xhci-hcd.0.auto
C:* #Ifs= 1 Cfg#= 1 Atr=e0 MxPwr= 0mA
I:* If#= 0 Alt= 0 #EPs= 1 Cls=09(hub ) Sub=00 Prot=00 Driver=hub
E: Ad=81(I) Atr=03(Int.) MxPS= 4 Ivl=256ms
** All of these were run with the internal USB port emtpy **
Remote Dongle in External USB2 Port before device powered on
osmc@osmc:~$ sudo lsusb
Bus 002 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
Bus 001 Device 002: ID 2017:1690 OSMC Remote Controller OSMC Remote Controller
Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Remote Dongle in External USB3 Port before device powered on
osmc@osmc:~$ sudo lsusb
Bus 002 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
SSK Device in External USB2 Port before device powered on
osmc@osmc:~$ sudo lsusb
Bus 002 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
Bus 001 Device 002: ID 2109:0715 VIA Labs, Inc. VL817 SATA Adaptor
Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
SSK Device in External USB3 Port before device powered on
**** THIS RESULTED IN THE SSK DRIVE NOT MOUNTING ****
osmc@osmc:~$ sudo lsusb
Bus 002 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
SSK Device unplugged and plugged back into the USB3 whilst the device was powered on
osmc@osmc:~$ sudo lsusb
Bus 002 Device 002: ID 2109:0715 VIA Labs, Inc. VL817 SATA Adaptor
Bus 002 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
SSK Device in External USB3 Port & Remote Dongle in External USB2 Port before device powered on
**** THIS RESULTED IN THE SSK DRIVE NOT MOUNTING AGAIN ****
osmc@osmc:~$ sudo lsusb
Bus 002 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
Bus 001 Device 002: ID 2017:1690 OSMC Remote Controller OSMC Remote Controller
Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
SSK Device unplugged and plugged back into the USB3 whilst the device was powered on
osmc@osmc:~$ sudo lsusb
Bus 002 Device 002: ID 2109:0715 VIA Labs, Inc. VL817 SATA Adaptor
Bus 002 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
Bus 001 Device 002: ID 2017:1690 OSMC Remote Controller OSMC Remote Controller
Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
And the verbose output from the final state listed above:
osmc@osmc:~$ sudo lsusb -v
Bus 002 Device 002: ID 2109:0715 VIA Labs, Inc. VL817 SATA Adaptor
Device Descriptor:
bLength 18
bDescriptorType 1
bcdUSB 3.10
bDeviceClass 0
bDeviceSubClass 0
bDeviceProtocol 0
bMaxPacketSize0 9
idVendor 0x2109 VIA Labs, Inc.
idProduct 0x0715 VL817 SATA Adaptor
bcdDevice 2.63
iManufacturer 1 SSK Corporation
iProduct 2 SSK USB3.2 SSD Flash Drive
iSerial 3 ABCDEFA94866
bNumConfigurations 1
Configuration Descriptor:
bLength 9
bDescriptorType 2
wTotalLength 0x0079
bNumInterfaces 1
bConfigurationValue 1
iConfiguration 0
bmAttributes 0x80
(Bus Powered)
MaxPower 896mA
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 0
bAlternateSetting 0
bNumEndpoints 2
bInterfaceClass 8 Mass Storage
bInterfaceSubClass 6 SCSI
bInterfaceProtocol 80 Bulk-Only
iInterface 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x81 EP 1 IN
bmAttributes 2
Transfer Type Bulk
Synch Type None
Usage Type Data
wMaxPacketSize 0x0400 1x 1024 bytes
bInterval 0
bMaxBurst 15
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x02 EP 2 OUT
bmAttributes 2
Transfer Type Bulk
Synch Type None
Usage Type Data
wMaxPacketSize 0x0400 1x 1024 bytes
bInterval 0
bMaxBurst 15
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 0
bAlternateSetting 1
bNumEndpoints 4
bInterfaceClass 8 Mass Storage
bInterfaceSubClass 6 SCSI
bInterfaceProtocol 98
iInterface 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x04 EP 4 OUT
bmAttributes 2
Transfer Type Bulk
Synch Type None
Usage Type Data
wMaxPacketSize 0x0400 1x 1024 bytes
bInterval 0
bMaxBurst 0
Command pipe (0x01)
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x85 EP 5 IN
bmAttributes 2
Transfer Type Bulk
Synch Type None
Usage Type Data
wMaxPacketSize 0x0400 1x 1024 bytes
bInterval 0
bMaxBurst 15
MaxStreams 32
Data-in pipe (0x03)
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x06 EP 6 OUT
bmAttributes 2
Transfer Type Bulk
Synch Type None
Usage Type Data
wMaxPacketSize 0x0400 1x 1024 bytes
bInterval 0
bMaxBurst 15
MaxStreams 32
Data-out pipe (0x04)
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x87 EP 7 IN
bmAttributes 2
Transfer Type Bulk
Synch Type None
Usage Type Data
wMaxPacketSize 0x0400 1x 1024 bytes
bInterval 0
bMaxBurst 0
MaxStreams 32
Status pipe (0x02)
Binary Object Store Descriptor:
bLength 5
bDescriptorType 15
wTotalLength 0x0046
bNumDeviceCaps 4
USB 2.0 Extension Device Capability:
bLength 7
bDescriptorType 16
bDevCapabilityType 2
bmAttributes 0x00000006
BESL Link Power Management (LPM) Supported
SuperSpeed USB Device Capability:
bLength 10
bDescriptorType 16
bDevCapabilityType 3
bmAttributes 0x00
wSpeedsSupported 0x000e
Device can operate at Full Speed (12Mbps)
Device can operate at High Speed (480Mbps)
Device can operate at SuperSpeed (5Gbps)
bFunctionalitySupport 1
Lowest fully-functional device speed is Full Speed (12Mbps)
bU1DevExitLat 10 micro seconds
bU2DevExitLat 2047 micro seconds
Container ID Device Capability:
bLength 20
bDescriptorType 16
bDevCapabilityType 4
bReserved 0
ContainerID {c9d7e740-958a-574b-9e64-ac7970b9e116}
SuperSpeedPlus USB Device Capability:
bLength 28
bDescriptorType 16
bDevCapabilityType 10
bmAttributes 0x00000023
Sublink Speed Attribute count 3
Sublink Speed ID count 1
wFunctionalitySupport 0x1100
bmSublinkSpeedAttr[0] 0x00050030
Speed Attribute ID: 0 5Gb/s Symmetric RX SuperSpeed
bmSublinkSpeedAttr[1] 0x000500b0
Speed Attribute ID: 0 5Gb/s Symmetric TX SuperSpeed
bmSublinkSpeedAttr[2] 0x000a4031
Speed Attribute ID: 1 10Gb/s Symmetric RX SuperSpeedPlus
bmSublinkSpeedAttr[3] 0x000a40b1
Speed Attribute ID: 1 10Gb/s Symmetric TX SuperSpeedPlus
can’t get debug descriptor: Resource temporarily unavailable
Device Status: 0x0000
(Bus Powered)
Bus 002 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
Device Descriptor:
bLength 18
bDescriptorType 1
bcdUSB 3.00
bDeviceClass 9 Hub
bDeviceSubClass 0
bDeviceProtocol 3
bMaxPacketSize0 9
idVendor 0x1d6b Linux Foundation
idProduct 0x0003 3.0 root hub
bcdDevice 4.09
iManufacturer 3 Linux 4.9.269-87-osmc xhci-hcd
iProduct 2 xHCI Host Controller
iSerial 1 xhci-hcd.0.auto
bNumConfigurations 1
Configuration Descriptor:
bLength 9
bDescriptorType 2
wTotalLength 0x001f
bNumInterfaces 1
bConfigurationValue 1
iConfiguration 0
bmAttributes 0xe0
Self Powered
Remote Wakeup
MaxPower 0mA
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 0
bAlternateSetting 0
bNumEndpoints 1
bInterfaceClass 9 Hub
bInterfaceSubClass 0
bInterfaceProtocol 0 Full speed (or root) hub
iInterface 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x81 EP 1 IN
bmAttributes 3
Transfer Type Interrupt
Synch Type None
Usage Type Data
wMaxPacketSize 0x0004 1x 4 bytes
bInterval 12
bMaxBurst 0
Hub Descriptor:
bLength 12
bDescriptorType 42
nNbrPorts 1
wHubCharacteristic 0x0009
Per-port power switching
Per-port overcurrent protection
bPwrOn2PwrGood 10 * 2 milli seconds
bHubContrCurrent 0 milli Ampere
bHubDecLat 0.0 micro seconds
wHubDelay 0 nano seconds
DeviceRemovable 0x00
Hub Port Status:
Port 1: 0000.0203 5Gbps power U0 enable connect
Binary Object Store Descriptor:
bLength 5
bDescriptorType 15
wTotalLength 0x000f
bNumDeviceCaps 1
SuperSpeed USB Device Capability:
bLength 10
bDescriptorType 16
bDevCapabilityType 3
bmAttributes 0x02
Latency Tolerance Messages (LTM) Supported
wSpeedsSupported 0x0008
Device can operate at SuperSpeed (5Gbps)
bFunctionalitySupport 3
Lowest fully-functional device speed is SuperSpeed (5Gbps)
bU1DevExitLat 0 micro seconds
bU2DevExitLat 0 micro seconds
can’t get debug descriptor: Resource temporarily unavailable
Device Status: 0x0001
Self Powered
Bus 001 Device 002: ID 2017:1690 OSMC Remote Controller OSMC Remote Controller
Device Descriptor:
bLength 18
bDescriptorType 1
bcdUSB 2.00
bDeviceClass 0
bDeviceSubClass 0
bDeviceProtocol 0
bMaxPacketSize0 32
idVendor 0x2017
idProduct 0x1690
bcdDevice 2.00
iManufacturer 1 OSMC Remote Controller
iProduct 2 OSMC Remote Controller
iSerial 0
bNumConfigurations 1
Configuration Descriptor:
bLength 9
bDescriptorType 2
wTotalLength 0x0054
bNumInterfaces 2
bConfigurationValue 1
iConfiguration 0
bmAttributes 0xa0
(Bus Powered)
Remote Wakeup
MaxPower 200mA
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 0
bAlternateSetting 0
bNumEndpoints 1
bInterfaceClass 3 Human Interface Device
bInterfaceSubClass 1 Boot Interface Subclass
bInterfaceProtocol 1 Keyboard
iInterface 0
HID Device Descriptor:
bLength 9
bDescriptorType 33
bcdHID 1.10
bCountryCode 0 Not supported
bNumDescriptors 1
bDescriptorType 34 Report
wDescriptorLength 76
Report Descriptors:
** UNAVAILABLE **
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x81 EP 1 IN
bmAttributes 3
Transfer Type Interrupt
Synch Type None
Usage Type Data
wMaxPacketSize 0x0040 1x 64 bytes
bInterval 8
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 1
bAlternateSetting 0
bNumEndpoints 1
bInterfaceClass 3 Human Interface Device
bInterfaceSubClass 1 Boot Interface Subclass
bInterfaceProtocol 2 Mouse
iInterface 0
HID Device Descriptor:
bLength 9
bDescriptorType 33
bcdHID 1.10
bCountryCode 0 Not supported
bNumDescriptors 1
bDescriptorType 34 Report
wDescriptorLength 106
Report Descriptors:
** UNAVAILABLE **
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x82 EP 2 IN
bmAttributes 3
Transfer Type Interrupt
Synch Type None
Usage Type Data
wMaxPacketSize 0x0040 1x 64 bytes
bInterval 8
can’t get device qualifier: Resource temporarily unavailable
can’t get debug descriptor: Resource temporarily unavailable
Device Status: 0x0002
(Bus Powered)
Remote Wakeup Enabled
Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Device Descriptor:
bLength 18
bDescriptorType 1
bcdUSB 2.00
bDeviceClass 9 Hub
bDeviceSubClass 0
bDeviceProtocol 1 Single TT
bMaxPacketSize0 64
idVendor 0x1d6b Linux Foundation
idProduct 0x0002 2.0 root hub
bcdDevice 4.09
iManufacturer 3 Linux 4.9.269-87-osmc xhci-hcd
iProduct 2 xHCI Host Controller
iSerial 1 xhci-hcd.0.auto
bNumConfigurations 1
Configuration Descriptor:
bLength 9
bDescriptorType 2
wTotalLength 0x0019
bNumInterfaces 1
bConfigurationValue 1
iConfiguration 0
bmAttributes 0xe0
Self Powered
Remote Wakeup
MaxPower 0mA
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 0
bAlternateSetting 0
bNumEndpoints 1
bInterfaceClass 9 Hub
bInterfaceSubClass 0
bInterfaceProtocol 0 Full speed (or root) hub
iInterface 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x81 EP 1 IN
bmAttributes 3
Transfer Type Interrupt
Synch Type None
Usage Type Data
wMaxPacketSize 0x0004 1x 4 bytes
bInterval 12
Hub Descriptor:
bLength 9
bDescriptorType 41
nNbrPorts 2
wHubCharacteristic 0x0009
Per-port power switching
Per-port overcurrent protection
TT think time 8 FS bits
bPwrOn2PwrGood 10 * 2 milli seconds
bHubContrCurrent 0 milli Ampere
DeviceRemovable 0x00
PortPwrCtrlMask 0xff
Hub Port Status:
Port 1: 0000.0100 power
Port 2: 0000.0103 power enable connect
can’t get device qualifier: Resource temporarily unavailable
can’t get debug descriptor: Resource temporarily unavailable
Device Status: 0x0001
Self Powered
osmc@osmc:~$ sudo cat /sys/kernel/debug/usb/devices
T: Bus=01 Lev=00 Prnt=00 Port=00 Cnt=00 Dev#= 1 Spd=480 MxCh= 2
B: Alloc= 0/800 us ( 0%), #Int= 0, #Iso= 0
D: Ver= 2.00 Cls=09(hub ) Sub=00 Prot=01 MxPS=64 #Cfgs= 1
P: Vendor=1d6b ProdID=0002 Rev= 4.09
S: Manufacturer=Linux 4.9.269-87-osmc xhci-hcd
S: Product=xHCI Host Controller
S: SerialNumber=xhci-hcd.0.auto
C:* #Ifs= 1 Cfg#= 1 Atr=e0 MxPwr= 0mA
I:* If#= 0 Alt= 0 #EPs= 1 Cls=09(hub ) Sub=00 Prot=00 Driver=hub
E: Ad=81(I) Atr=03(Int.) MxPS= 4 Ivl=256ms
T: Bus=01 Lev=01 Prnt=01 Port=01 Cnt=01 Dev#= 2 Spd=12 MxCh= 0
D: Ver= 2.00 Cls=00(>ifc ) Sub=00 Prot=00 MxPS=32 #Cfgs= 1
P: Vendor=2017 ProdID=1690 Rev= 2.00
S: Manufacturer=OSMC Remote Controller
S: Product=OSMC Remote Controller
C:* #Ifs= 2 Cfg#= 1 Atr=a0 MxPwr=200mA
I:* If#= 0 Alt= 0 #EPs= 1 Cls=03(HID ) Sub=01 Prot=01 Driver=usbhid
E: Ad=81(I) Atr=03(Int.) MxPS= 64 Ivl=8ms
I:* If#= 1 Alt= 0 #EPs= 1 Cls=03(HID ) Sub=01 Prot=02 Driver=usbhid
E: Ad=82(I) Atr=03(Int.) MxPS= 64 Ivl=8ms
T: Bus=02 Lev=00 Prnt=00 Port=00 Cnt=00 Dev#= 1 Spd=5000 MxCh= 1
B: Alloc= 0/800 us ( 0%), #Int= 0, #Iso= 0
D: Ver= 3.00 Cls=09(hub ) Sub=00 Prot=03 MxPS= 9 #Cfgs= 1
P: Vendor=1d6b ProdID=0003 Rev= 4.09
S: Manufacturer=Linux 4.9.269-87-osmc xhci-hcd
S: Product=xHCI Host Controller
S: SerialNumber=xhci-hcd.0.auto
C:* #Ifs= 1 Cfg#= 1 Atr=e0 MxPwr= 0mA
I:* If#= 0 Alt= 0 #EPs= 1 Cls=09(hub ) Sub=00 Prot=00 Driver=hub
E: Ad=81(I) Atr=03(Int.) MxPS= 4 Ivl=256ms
T: Bus=02 Lev=01 Prnt=01 Port=00 Cnt=01 Dev#= 2 Spd=5000 MxCh= 0
D: Ver= 3.10 Cls=00(>ifc ) Sub=00 Prot=00 MxPS= 9 #Cfgs= 1
P: Vendor=2109 ProdID=0715 Rev= 2.63
S: Manufacturer=SSK Corporation
S: Product=SSK USB3.2 SSD Flash Drive
S: SerialNumber=ABCDEFA94866
C:* #Ifs= 1 Cfg#= 1 Atr=80 MxPwr=896mA
I:* If#= 0 Alt= 0 #EPs= 2 Cls=08(stor.) Sub=06 Prot=50 Driver=usb-storage
E: Ad=81(I) Atr=02(Bulk) MxPS=1024 Ivl=0ms
E: Ad=02(O) Atr=02(Bulk) MxPS=1024 Ivl=0ms
I: If#= 0 Alt= 1 #EPs= 4 Cls=08(stor.) Sub=06 Prot=62 Driver=usb-storage
E: Ad=04(O) Atr=02(Bulk) MxPS=1024 Ivl=0ms
E: Ad=85(I) Atr=02(Bulk) MxPS=1024 Ivl=0ms
E: Ad=06(O) Atr=02(Bulk) MxPS=1024 Ivl=0ms
E: Ad=87(I) Atr=02(Bulk) MxPS=1024 Ivl=0ms
osmc@osmc:~$
1 Like
